Kemmler TLD系列台虎钳

TWIN VICE TLD-40G/HV

MECHANICAL

Construction:
- Double-clamping via two mobile and one fixed jaw.
- Clamping positions: horizontal, vertical and lateral
- The steel body is hardened and grinded all-round
- Integrated pull-down mechanism
- Repeating accuracy = 0,01 mm
- Clamping accuracy at the centre = 0,01 mm
- Bed height H: = 0,01 mm

Delivery:
- Instructions for use
- Wrench
- Test certificate

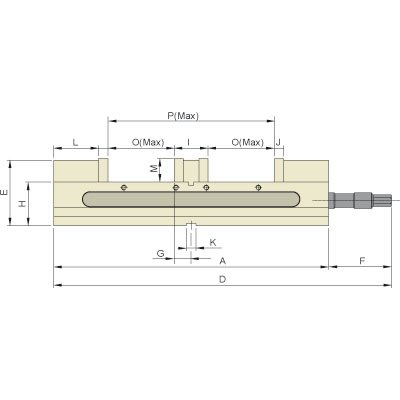

A	405
B	104
C	103
D	459
E	96,5
F	54
G	27,5
H	63,5
I	55
J	15
K	18
L	69
M	38,0
N	14
O	90
P	235
kg	20
