Kemmler DIN6357横开槽套式铣刀杆

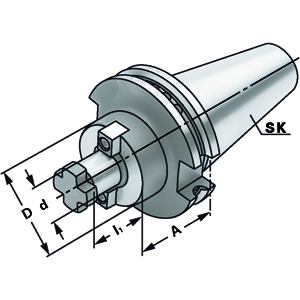

SHELL MILL HOLDER SK 40-16-35

WITH ENLARGED CONTACT FACE

DIN 69871 AD/B

SK = SK 40
d _H6= 16
A = 35
l₁ = 17
D = 38

Application:
For mounting milling cutters with transversal groove.

d = 40/d = 60:
For large diameter face mill cutters with four additional threaded holes according to DIN 2079.

Delivery:
With drivers, cross head retaining screw and cylinder head retaining screw for cutters with central coolant.

. runout accuracy: = 0.005 mm
. balanced G6.3 at 15,000 rpm
. Form AD/B: Delivery in form AD, type B closed with releasable headless screws.
. Bore holes for data carriers ("Balluffchip") according to DIN 69873 in collar.
