Kemmler E1型钻卡头

BORING HOLDER FOR DRILLS WITH INDEXABLE INSERTS

SK 50-25-70

DIN 69871 AD/B

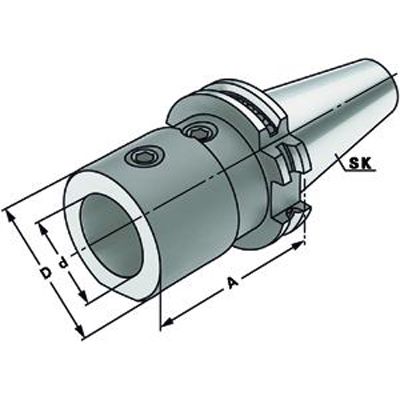

SK = SK 50
d _H5= 25
A = 70
D = 45

Application:
For mounting solid drills with cylindrical
shank according to DIN 6595.

Note:
Contact surface precision grinded

Delivery:
With clamping screws

. runout accuracy: = 0.004 mm
. balanced G6.3 at 15,000 rpm
. Form AD/B: Delivery in form AD, type B closed with releasable headless screws.
. Bore holes for data carriers ("Balluffchip") according to DIN 69873 in collar.
